PRESSURE PUMPING

Overview

Hydraulic frac pumps require frequent changes of the reciprocating plunger seal packing. Keeping the packing properly lubricated while pumping is a necessity to help extend its life. The goal is to keep positive pressure on the packing bore and film strength on the plunger by delivering small-metered shots of either grease or oil. Long pumping hours, harsh environments, and contamination put a strain on the lube systems used to achieve this goal.

Bill Spitzer & Associates provides several solutions to the market from a standard Pump-In-a-Box to our Large Capacity FlowMaster Packages.

Key Offerings

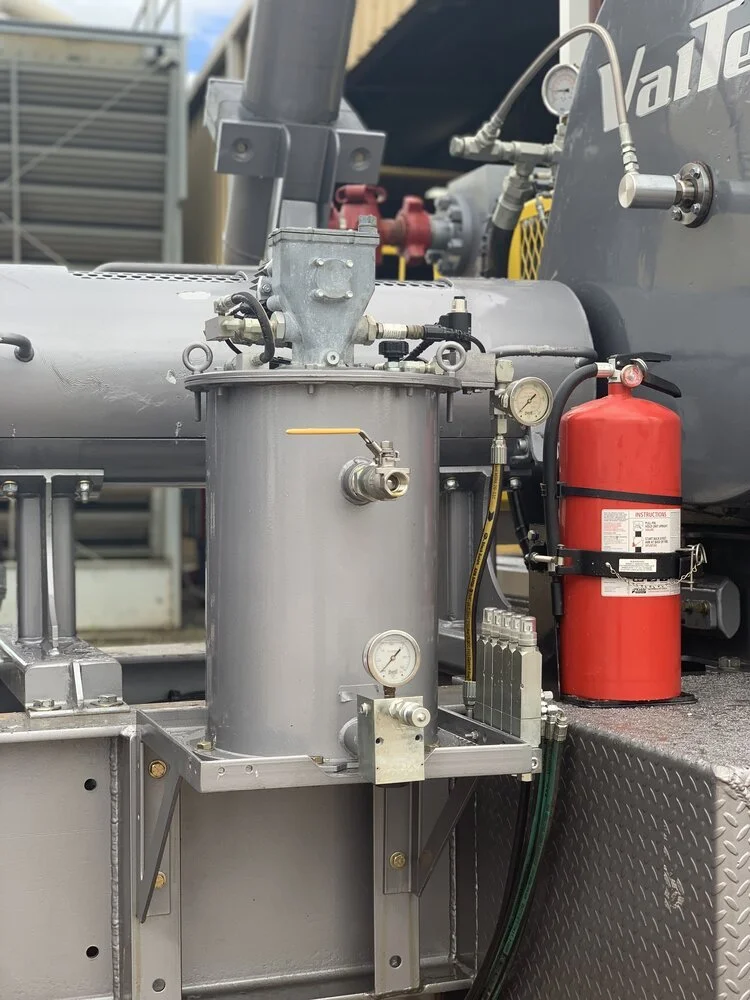

  • Large Capacity FlowMaster Packages

    • Utilizes Lincoln’s FlowMaster Pump Station proven in the harshest environments

    • 60 lb. Steel reservoir holds 8-9 times more lubricant than traditional systems

    • Reservoir low level signal and auto-fill shut off packages available

    • Incorporates a Fast Fill Dirt Trap for filtration

    • Lincoln SL-V Injectors proven to be the perfect metering device with a patented metal-to-metal seat, which drastically improves the life of the injector with frac sand being inevitable

    • Custom Stainless Steel Controls Packages- Programs available based on time, stroke count or both.

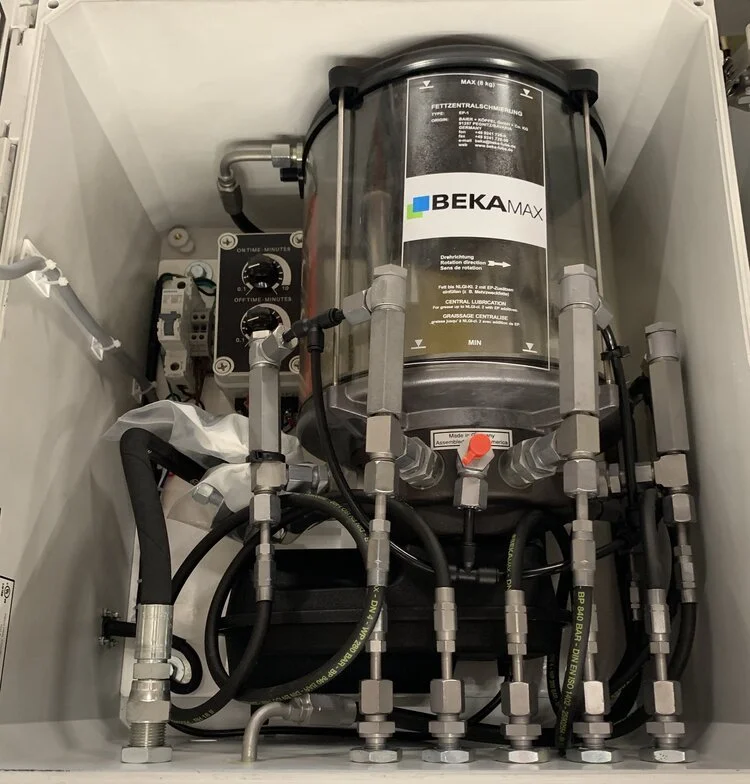

  • Pump-In-a-Box

    • Utilizes BEKA’s field proven EP-1 Pump with PE-170 Pump Elements

    • Pump to point technology with individual pumping elements for each packing point

    • Custom Controls Packages available including our Spitzer Simple Timer

    • System protected in a NEMA 4X Enclosure

Value

  • Large Capacity FlowMaster Packages

    • Large reservoir capacity increases reliability by minimizing contamination caused by poor refilling
techniques

    • Large reservoir capacity improves safety by keeping frac hands out of the iron during pump time for grease system refill

    • Increase in packing life by quickly replenishing the film strength on the plunger through smaller shots
of grease more frequently


    • Components are specifically designed to handle the rough environment, which minimizes field
“aggravation” caused by distribution block failure or pump element failure


    • Reduced lubricant consumption leading to significant cost savings in grease or oil

    • System is designed to perform for years versus months


    • Cost of ownership much lower. Return on investment is less than one year


    • Market proven over 10 years in the field

  • Pump-In-a-Box

    • Industry Standard

    • Simple and cost effective solution

    • Easily replaceable upon failure

Other Applications On Pad

  • C-Pumps

  • Blenders

  • Sand Conveyors

  • Wireline

  • Wellhead and Plug Valve Lubrication
