Superior Solutions Providing Cost-Effective Outcomes

EQUIPMENT FOUNDATION SOLUTIONS

All the top-notch quality you need, with far less stress on your team and risk to your equipment. Our team delivers specialized products for equipment foundations and manages installation so you can be sure everything is running in tip-top shape.

INQUIRE NOW

All About Our Equipment Foundation Solutions

Dynamic equipment and machinery with reciprocating, rotating, impulsive, or impact aspects require a monolithic structure to resist forces and vibrations. Epoxy grout is the critical component of the foundation system that enables the transfer of energy from the equipment to the foundation and sub-soil, ensuring your machinery is stable and secure during installation.

Our goal is to provide specialized products for equipment foundations and guide the installation of machinery and equipment properly, efficiently, and successfully for our clients. Our offerings meet ANSI, ASME, and PIP standards, resist corrosion, and improve the damping ratio compared to steel, cast iron, & granite.

Who Needs Epoxy Grouting?

Epoxy grouting is required any time rotating, reciprocating, or process equipment is installed on a concrete foundation. This includes reciprocating or centrifugal compressors, pumps, gas or steam turbines, motors, fans, and large process packages. When epoxy grout is not used for these applications, or when equipment is improperly grouted, these conditions can lead to premature failure due to misalignment, pipe strain, and high resonance vibration frequencies.

BSA works with contractors, engineers, and end users across oil and gas, petrochemical, refining, power generation, and manufacturing to specify the right epoxy grout for each application and ensure proper installation from start to finish. Whether you are looking to manually pour or utilize our pump services, our team has the products and technical expertise to get it done right.

Epoxy vs. Cementitious Grout: Which Do You Need?

Epoxy grouts are the preferred choice for most rotating equipment applications. They offer superior compressive strength, chemical resistance, and long-term reliability under dynamic loading. BSA's epoxy grout lineup includes Chockfast Red Versaflow, Chockfast Red, Escoweld 7505E/7530, and FasTrac CE815.

Cementitious grouts and specialty concrete such as FasTrac NS or Fastrac 246 are excellent for lighter-duty high temperature applications for rotating equipment and structural or static equipment. BSA's team can help determine the right product based on equipment type, operating conditions, and schedule requirements.

CORE PRODUCTS

Epoxy Grouts

High performance two- and three-component epoxy grout systems

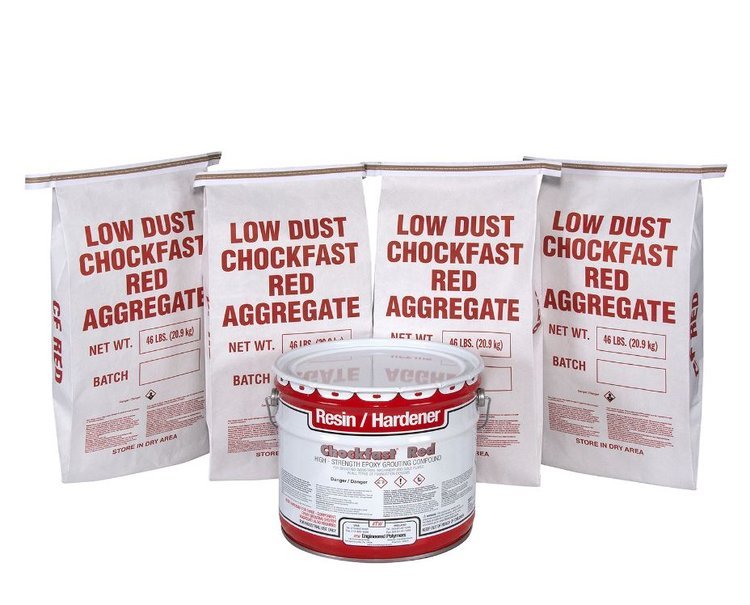

Four bags of low dust chockfast red aggregate and a container of resin/hardener for epoxy flooring.

Chockfast Red

Five bags of epoxy grout aggregate surrounding a bucket of resin/converter for construction or flooring applications.

Escoweld 7505E/7530

Multiple bags and containers of construction materials, including two large bags labeled 'FastTrac CE815 Regular Aggregate,' a white bucket labeled 'CE815 Epoxy Grout' with a large blue letter 'A,' a white bucket with a red letter 'B,' and a small yellow container with a white cap.

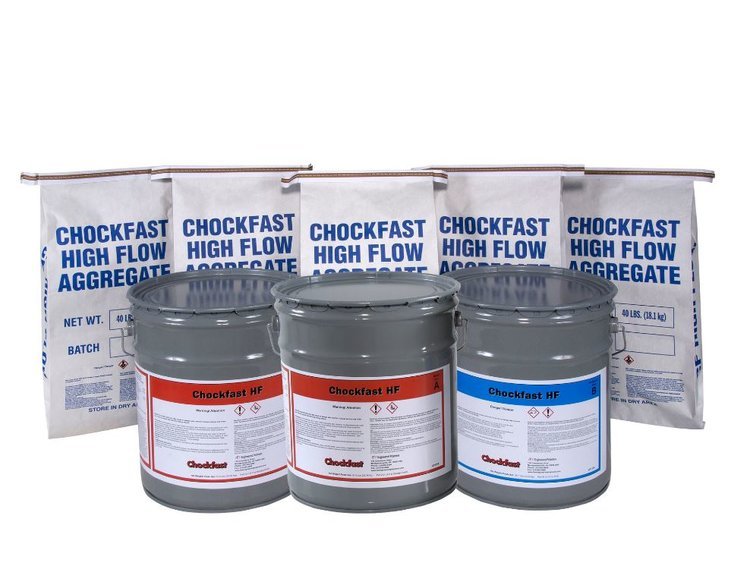

Industrial bags labeled 'Chockfast High Flow Aggregate' and three metal containers labeled 'Chockfast HF' in red and blue, used for heavy-duty industrial applications.

FasTrac CE815

Chockfast Red Versaflow

A large metal container of Chockfast Black epoxy resin and a smaller bottle of hardener for industrial use.

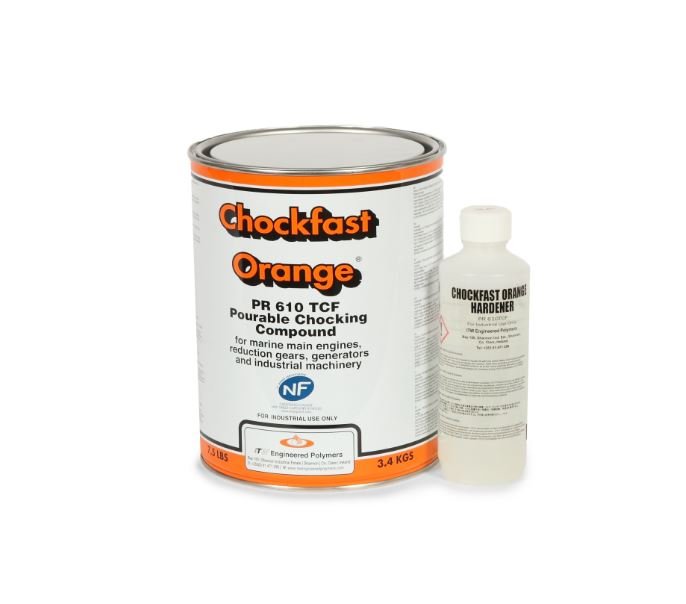

A can of Chockfast Orange pourable chocking compound and a bottle of hardener for marine engines and industrial machinery.

Chockfast Black

Chockfast Orange

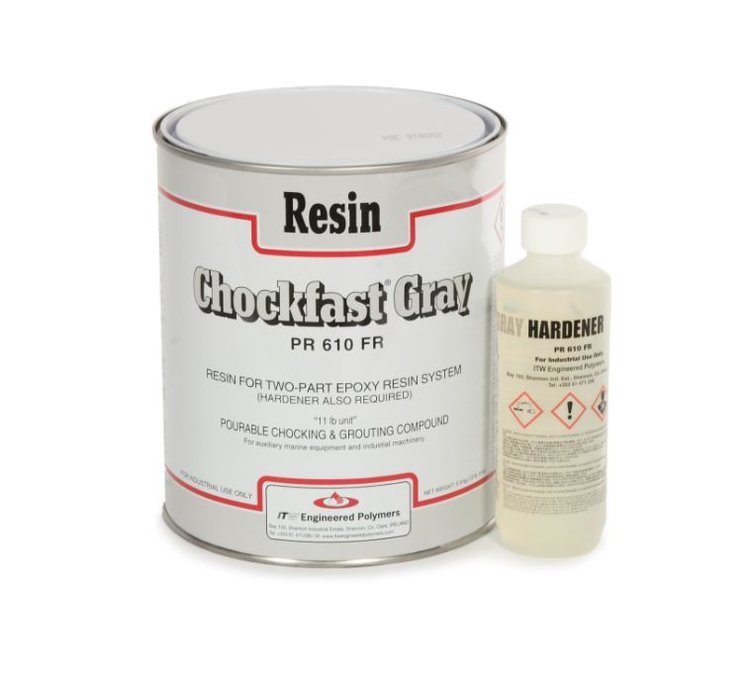

Can of resin labeled 'Chockfast Gray' and a bottle of hardener labeled 'Gray Hardener' for epoxy resin system.

Chockfast Gray

Cementitious Grouts

High performance, non-shrink precision grouts

50-pound bag of FAS Trac NS Grout cement used in construction, with orange and white checkered design at the top and detailed product information printed on the front.

FasTrac NS

Workers pouring concrete at a construction site near a large rusted steel tank.

High Early Grouts

HTC-5000

A metal can labeled as expansion joint compound and a bottle of liquid with a white cap and blue label, likely containing the same material.

Support Materials

Expansion Joint Compounds

Red metal toolbox resting on a wooden pallet on a concrete floor.

Precast Bases - Bastek

Set of three black roller clamp rollers stacked horizontally.

Anchor Bolts & Sleeves

Container of American Safety MS-7CZ metal primer.

Primer

GROUT PUMPING & SERVICES

Construction site with a worker in blue safety gear and helmet operating a concrete screed, with construction equipment, scaffolding, and large industrial structures in the background.
LEARN MORE

FEATURED CASE STUDIES:

EQUIPMENT FOUNDATION SOLUTIONS

Close-up of a construction site showing a concrete foundation with metal brackets and bolts, a wooden beam, and construction scaffolding.

Cold Weather Epoxy Grouting Three 752hp Pumps with Rain and High Wind Gusts

Read More

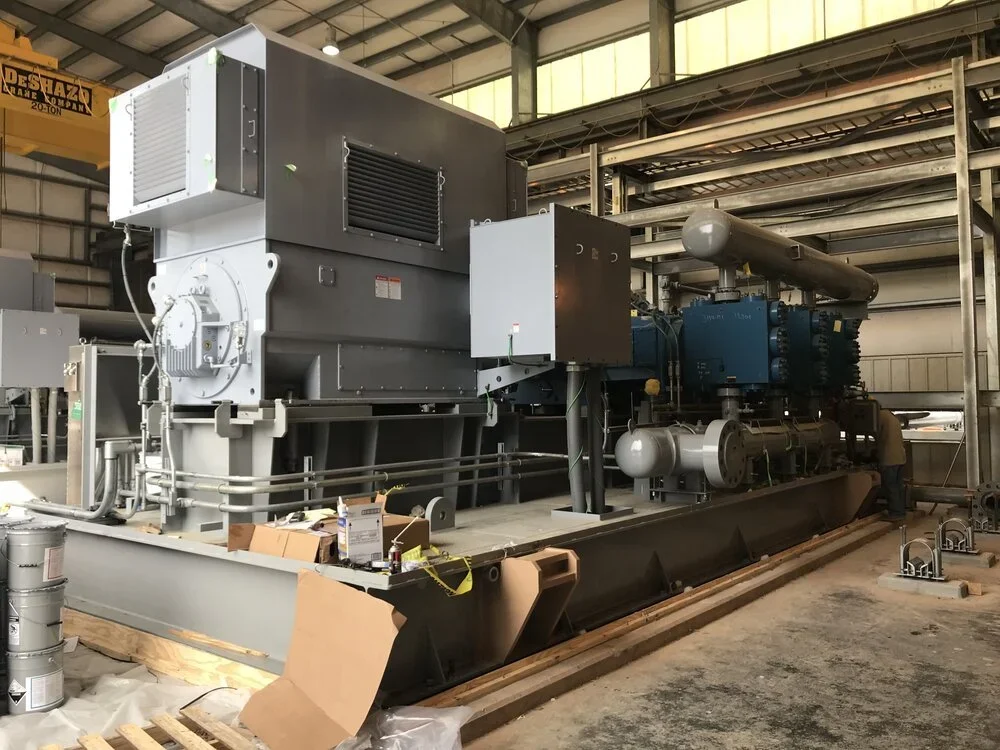

Large industrial machine with motors and pipes inside a warehouse or factory.

Additional 6,000 HP Compressor Packages Grouted By Pumping

Read More
A view looking up at a small round skylight in the ceiling with a natural outdoor scene visible through it, and several small round recessed lights around the ceiling.

BSA BRIEF - BSA Increases Grout Pumping Efficiency.

Read More

Cost-Effective Outcomes that Never Sacrifice Quality

Our passion for service drives everything we do, so you can count on us to deliver the results you desire. Ready to add a trusted partner to your back pocket?

Get in Touch
