SKF CircOil Lubrication System

Written By Connor Spitzer

January 17, 2018

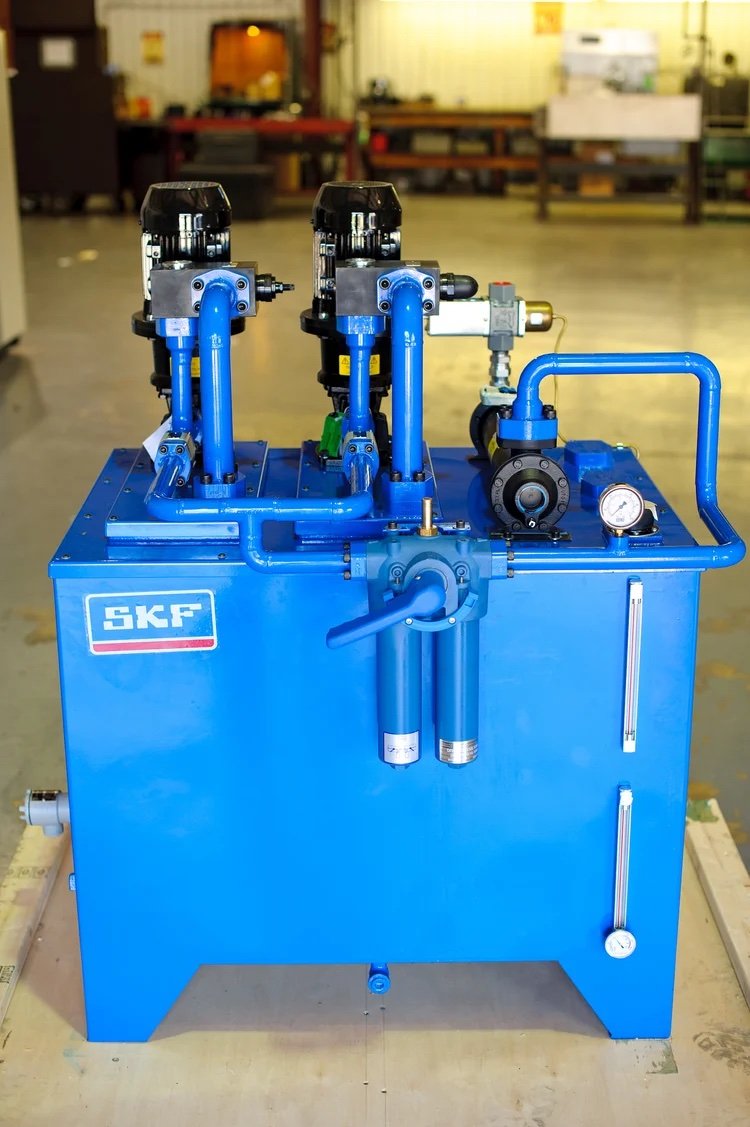

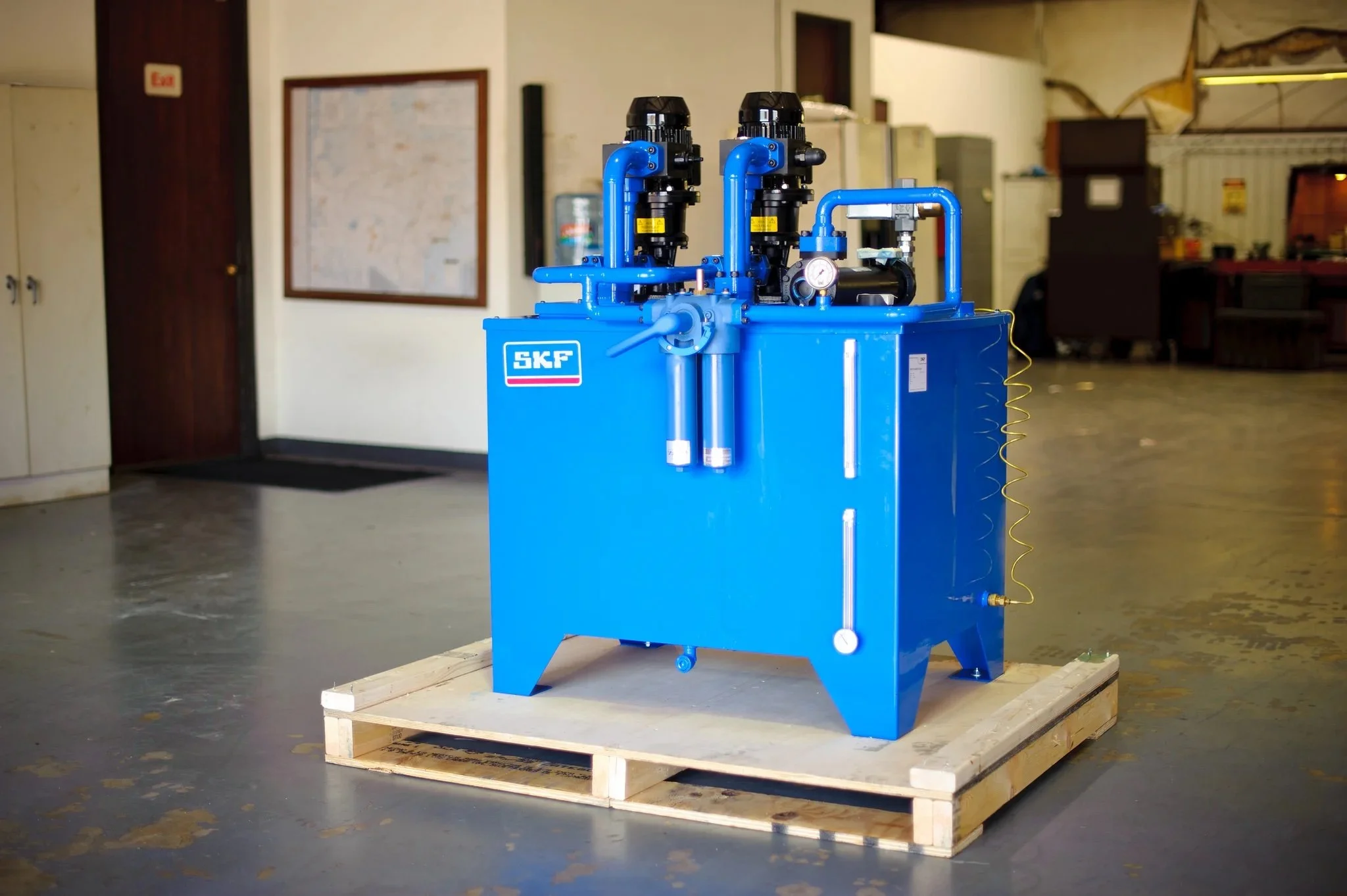

Safety Critical SKF CircOil Lubrication System for Critical, Hot Running, and Problematic Process Fans and Pumps

Main Features:

  • (2) 460V, 60 Hz, 31 liter/minute Vertical Mount Gear Pump units

  • (2) 1 – 12 bar adjustable Pressure Regulating Valves

  • Oversized 400 liter Carbon Steel reservoir, allowing efficient convective and radiant heat transfer

  • Low Level Switch

  • Duplex 10 micron Oil Filter

  • Pressure Gauge

  • Reservoir Desiccant Air Breather

  • Oil Level Sight Gauge with Temperature Gauge

  • Shell and Tube water cooled Heat Exchanger – 15,000 BTU/Hour @ 20 F approach

  • Water Modulating Valve

  • All electrical components suitable for Class 1, Group C & D, Div 2
